Place of Origin:
JiangSu, China
Brand Name:
Hivetech
Certification:
ISO9001、ISO14001
Contact Us

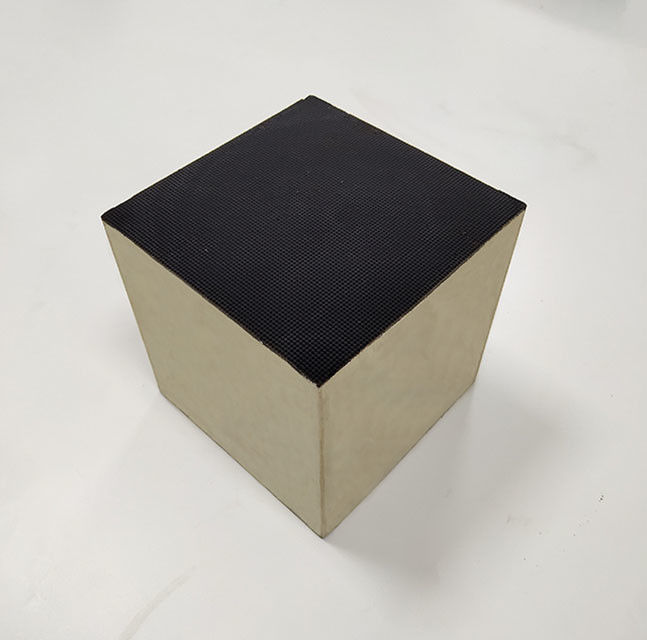

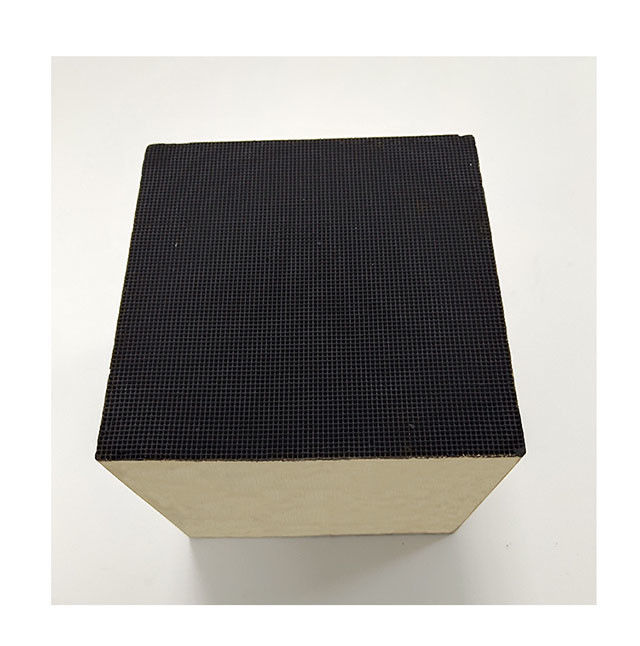

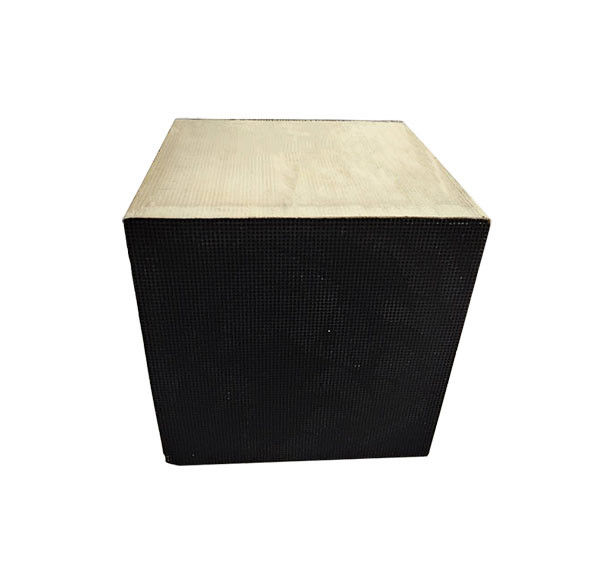

Cordierite Honeycomb SCR Denox Catalyst Substrate Manufacturers Copper based low temperature SCR
The maximum number of holes can reach 400 cpsi Cell density
Section size: 300mm * 300mm
Height dimension: 300mm, 400mm
Coated SCR catalyst
Introduction to SCR catalyst:
It adopts international advanced technology and high-quality cordierite catalyst carrier, and is coated with composite molecular sieve catalyst to improve the activity stability of the catalyst at high temperature. It can be widely used at 300 -550 degrees, and can be customized according to different working conditions. Commonly used in various gas pit furnaces, diesel generator sets and other high temperature flue gas fields.
NOx oxides are by-products of combustion reactions in air, and these gases are harmful to human health and the environment. The SCR catalysts have honeycomb structures, which can Selective Catalytic Reduction (SCR) of nitrogen oxides (NOx) efficiently in the presence of excess O2 atmosphere. NOx is reduced to N2 and H2O by ammonia (or using urea as precursor) with which is used as a reducing agent.
Hivetech has developed SCR catalysts for meeting NOx emission control both of mobile and stationary applications. Depending on different application scene, Hivetech can provide matched wash-coated products including Fe/zeolite (450~620 oC), Cu/Zeolite (190~550 oC), vanadium-based metal oxides (230~470 oC) and Mn-containing oxide catalysts (130~250 oC).
Customized projects for different gas conditions, alternative projects of other international brands.
Applications:
1. Gas generator set
2. Boiler/turbine
3. Gas generator unit
4. Landfill gas generator set
5. Biogas generator set
Advantages:
Low voltage loss and load
High sulfur resistance
High altitude speed design
Multiple specifications and mesh selection
