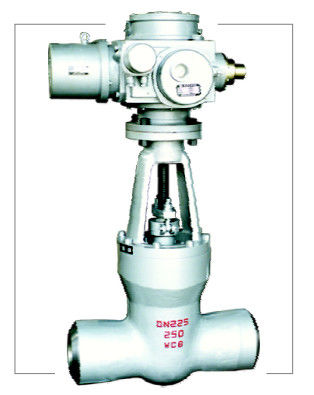

Electric station vavle-High temperature and high pressure vavle for power station
Products design features
1,Actuation modes: manual,electric,spur and bevel gear,pneumatic actuations,please make it clear at order.
2,Weld-connected gate valve and stop valve are suitable for the pipeline of PN1.6~32.0Mpa,P54/100V-P57/170V,a working temperature ≤540℃(570℃ for P57/170V)in various systems ofpetroleum,chemical industry,steam power,hydraulic etc.to cut off and get through the medium. The suitable mediaare:water,steam,oil goods,acid media and so on.
3,In line with the requirements of advanced standards at home and abroad, the middle chamber of the valve adopts the pressure self tightening sealing structure, and the two ends of the branch pipe adopt the welding structure. The welded gate can be matched according to the standards or user requirements, with reliable sealing, good performance and beautiful appearance.
4,The sealing surfaces of valve clack and valve seat shall be welded with iron base alloy or Stelire cobalt base hard alloy according to different requirements, and the valve clack and valve seat shall have good wear resistance, high temperature resistance, shock corrosion resistance, friction resistance and long service life.
5,The stem, after the modified and surface nitriding treatment,has a good friction and corrosion resistance and a back-seal structure to ensure the valve no leak outward from the stem when opened during running and able to replace the stem packing.
6,The medium and large caliber can adopt the inner bypass structure and be equipped with rolling bearings and thrust bearings, which can be opened and closed flexibly and easily.
