Place of Origin:
Liaoning，China
Certification:
GB/T 19001-2016/IsO 9001:2015
Model Number:
single stage type
Contact Us
Canned motor pump single stage type
Advantages:
1. The advanced European hydraulic model is used, with high hydraulic efficiency;
2. Excellent electromagnetic design, high motor efficiency;
3. Shielding sleeve is made of Hastelloy C material and special molding process, with extremely low magnetic permeability;
4. The sliding bearing uses pressureless sintered crystalline silicon carbide, which has high strength and good wear resistance;
5. The axial force is automatically balanced, and the bearing has zero wear during operation;
6. Heat balance design, the heat generated by magnetic loss will not lead to medium vaporization;
7. Building block principle, simple structure, convenient for on-site maintenance;
8. The product is stable, reliable, with long service life and low maintenance cost.
| flow | 0.5~1000m³/h |
| lift | 10~200m |
| speed | 1450/2900r/min' |
| working temperature | -140~+100℃ |
| Applicable fluid viscosity | 0.1~150cp |
| Rated pressure | 1~20Mpa |
| Material requirements | customized |
| Motor requirements | customized |
| Fluid density | customized |
| NPSH requirements | customized |

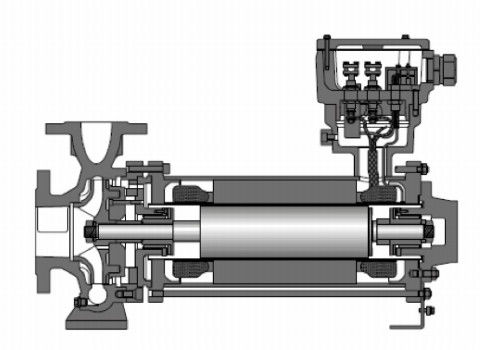

Shielded electric pump is a new type of pump, which consists of pump, shield sleeve and shield motor. The rotor of the shielded motor is coaxial with the impeller, and the stator is separated from the rotor by the stator shield sleeve. When the rotor of the shielded motor rotates, the impeller rotates synchronously to realize the non-contact transmission of power and transform the dynamic seal into a static seal, so as to achieve complete leakage free.
The products are mainly used in petroleum, chemical industry, refrigeration, chlor alkali, environmental protection and other industries to transport flammable, explosive, highly toxic, corrosive and other dangerous media.
