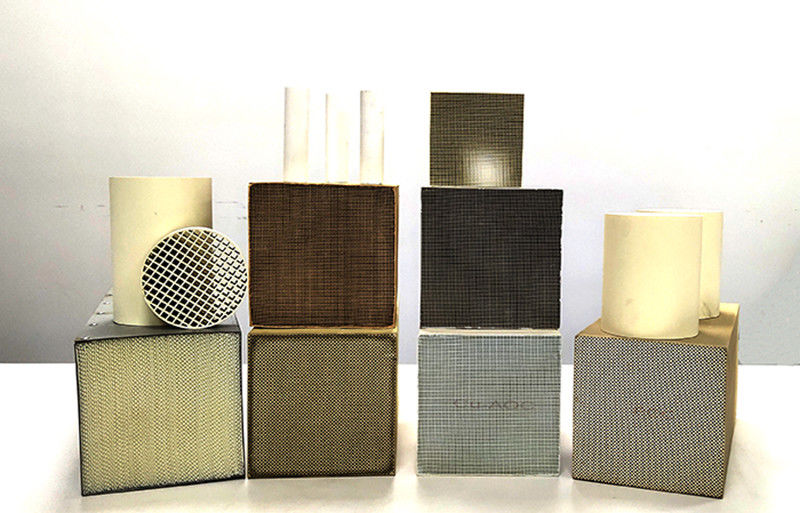

Varadium W Titiamium VWT Scr Catalyst Module Middle Temperature
The SCR catalyst of Middle Temperature for Varadium -W-Titiamium/VWT
Product Description
1. Introuduction
The catalyst adopts the front-end hardening process, adds wear-resistant coating and has long mechanical life. The raw material is high-quality anatase titanium dioxide with large specific surface area. The product formula is optimized for flue gas of various industries, and the anti-poisoning ability is strong. According to different flue gas conditions, product design has strong pertinence and excellent product performance. Widely used in power plant boilers, industrial boilers and other industries.
The catalyst adopts the front-end hardening process, adds wear-resistant coating and has long mechanical life. The raw material is high-quality anatase titanium dioxide with large specific surface area. The product formula is optimized for flue gas of various industries, and the anti-poisoning ability is strong. According to different flue gas conditions, product design has strong pertinence and excellent product performance. Widely used in power plant boilers, industrial boilers and other industries.
2. Specification
| Test items | unit | Standard value | measured value | |
| Main crystalline phase content of cordierite | % | >=90.0 | 92 | |
| Chemical composition | Al2O3 | % | 35.4±1.5 | 35.4 |
| MgO | % | 13.5±1.5 | 13.05 | |
| SiO2 | % | 49.7±1.5 | 49.59 | |
| Capacity | Kg/L | <=0.50 | 0.48 | |
| Compressive strength | Barotropy | Mpa | >=10.0 | 20.05 |
| Side compression | Mpa | >=2.0 | 6.53 | |
| C- axis | Mpa | >=0.15 | 0.45 | |
| Thermal expansivity(20-800℃) | 10-6/℃ | <=1.2 | 0.846 | |
| Thermal shock property(550℃) | times | >=3 | 3 | |
| Softening temperature | ℃ | >=1400 | 1405 | |
| Water absorption | % | 20-28 | 24.2 | |
3.pottery general specifications
| Diameter ø | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 1# | 80 | 3.15 | 60 | 80 | |||||||||
| 2# | 83 | 3.27 | 60 | 80 | 95 | 125 | |||||||
| 3# | 93 | 3.66 | 60 | 75 | 76.2 | 88.3 | 90 | 93 | 101.6 | 130 | 147.5 | 152.4 | |
| 4# | 101.6 | 4.00 | 60 | 62 | 68 | 75 | 76.2 | 80 | 90 | 101.6 | 123.3 | 136 | 152.4 |
| 5# | 103 | 4.06 | 100 | 130 | |||||||||
| 6# | 105.7 | 4.16 | 100 | 110 | 115 | 130 | 147.5 | 152.4 | |||||
| 7# | 118.4 | 4.66 | 50 | 60 | 63.5 | 70 | 76.2 | 90 | 100 | 101.6 | 120 | 127 | 152.4 |
| 8# | 143.8 | 5.66 | 75 | 76.2 | 101.6 | 152.4 | |||||||
| 9# | 165.1 | 6.50 | 139.7 | ||||||||||
| 10# | 170 | 6.69 | 100 | ||||||||||
| Ellipse | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 11# | 120.65x80.01 | 3.15x4.75" | 50 | 75 | 100 | 120 | 152.4 | ||||||
| 12# | 144.3x68.1 | 5.68x2.68" | 76.2 | 101.6 | 152.4 | ||||||||
| 13# | 144x68 | There is no such specification. | 100 | 125 | |||||||||
| 14# | 147x95 | 5.79x3.74" | 40 | 50 | 100 | 127 | 152.4 | ||||||
| 15# | 144.8x81.3 | 5.7x3.2" | 50 | 76.5 | 101.6 | 152.4 | |||||||
| 16# | 169.7x80.8 | 6.68x3.18" | 101.6 | 127 | 152.4 | ||||||||
Remark: The size is not complete, it is only routine.
| Length | Width | Height | Cell density(CPSI) |
| 150 | 150 | 50 | 46,100,200,300,400 |
| 150 | 150 | 75 | |
| 150 | 150 | 100 | |
| 150 | 150 | 200 | |
| 150 | 150 | 300 | |
| 150 | 150 |
400
|
Company Information
Founded in Shanghai in 2019, Shanghai Jisi Environmental Protection Technology Co., Ltd. is a technology, sales and service company focusing on the environmental protection of industrial exhaust gas; In the same period, a brand new catalyst brand "Hive Tech" was created for the industrial exhaust catalyst market, aiming to provide high-quality catalysts for the market.
The establishment of "Haifu" hopes to make domestic brands occupy a place in this market through continuous R&D investment and its advanced production equipment. Our fully automated production line brings fast response and delivery as well as high quality and stability. Localized production brings high cost performance products, thus breaking the monopoly and leading position of imported catalysts.
The company's main products are precious metal/base metal catalysts for VOC emission reduction, SCR catalysts. In addition to general-purpose catalysts, the company also launched efficient alkane catalysts, S-resistant catalysts and halogen resistant catalysts for various market segments.
In addition, the shareholders and relevant beneficiaries of the Company also act as agents for other environmental protection related products, such as pumps/valves/control components, to obtain the best price through long-term cooperation with suppliers of this type for foreign trade business.
