Euro II Cordierite Honeycomb Catalyst Element Support Euro 2 6 Gasoline Vehicles
Factory Outlet Honeycomb Ceramic Substrate
Product Description
1. Introuduction

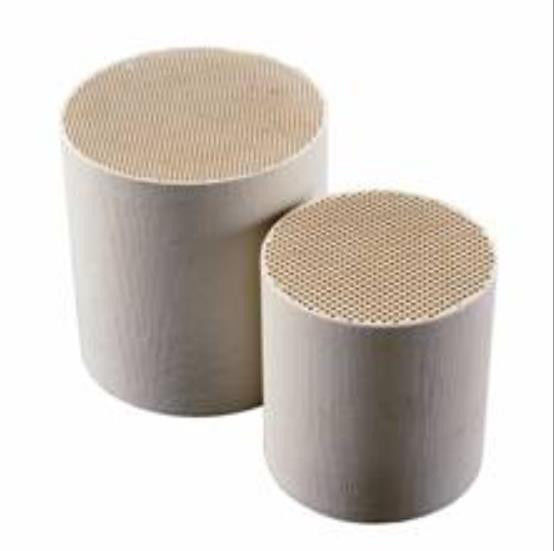

Honeycomb ceramic substrate is made of cordierite, and it is used for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.
1. The honeycomb ceramic substrate have a very competive substrates.
2. We can produce 100CPSI, 200CPSI,400CPSI,600CPSI can be in the shape of round ,racetrack and oval.
3. Specification can be customerlized, as the the customers requirement.
4. can be coated with the catalyst and the noble metal as the customers emission standards:Euro II, EuroIII ,EuroIV ,EuroV,EuroVI.
2. Specification
| Test items | unit | Standard value | measured value | |
| Main crystalline phase content of cordierite | % | >=90.0 | 92 | |
| Chemical composition | Al2O3 | % | 35.4±1.5 | 35.4 |
| MgO | % | 13.5±1.5 | 13.05 | |
| SiO2 | % | 49.7±1.5 | 49.59 | |
| Capacity | Kg/L | <=0.50 | 0.48 | |
| Compressive strength | Barotropy | Mpa | >=10.0 | 20.05 |
| Side compression | Mpa | >=2.0 | 6.53 | |
| C- axis | Mpa | >=0.15 | 0.45 | |
| Thermal expansivity(20-800℃) | 10-6/℃ | <=1.2 | 0.846 | |
| Thermal shock property(550℃) | times | >=3 | 3 | |
| Softening temperature | ℃ | >=1400 | 1405 | |
| Water absorption | % | 20-28 | 24.2 | |
3.GRACE pottery general specifications
| Diameter ø | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 1# | 80 | 3.15 | 60 | 80 | |||||||||
| 2# | 83 | 3.27 | 60 | 80 | 95 | 125 | |||||||
| 3# | 93 | 3.66 | 60 | 75 | 76.2 | 88.3 | 90 | 93 | 101.6 | 130 | 147.5 | 152.4 | |
| 4# | 101.6 | 4.00 | 60 | 62 | 68 | 75 | 76.2 | 80 | 90 | 101.6 | 123.3 | 136 | 152.4 |
| 5# | 103 | 4.06 | 100 | 130 | |||||||||
| 6# | 105.7 | 4.16 | 100 | 110 | 115 | 130 | 147.5 | 152.4 | |||||
| 7# | 118.4 | 4.66 | 50 | 60 | 63.5 | 70 | 76.2 | 90 | 100 | 101.6 | 120 | 127 | 152.4 |
| 8# | 143.8 | 5.66 | 75 | 76.2 | 101.6 | 152.4 | |||||||
| 9# | 165.1 | 6.50 | 139.7 | ||||||||||
| 10# | 170 | 6.69 | 100 | ||||||||||
| Ellipse | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 11# | 120.65x80.01 | 3.15x4.75" | 50 | 75 | 100 | 120 | 152.4 | ||||||
| 12# | 144.3x68.1 | 5.68x2.68" | 76.2 | 101.6 | 152.4 | ||||||||
| 13# | 144x68 | There is no such specification. | 100 | 125 | |||||||||
| 14# | 147x95 | 5.79x3.74" | 40 | 50 | 100 | 127 | 152.4 | ||||||
| 15# | 144.8x81.3 | 5.7x3.2" | 50 | 76.5 | 101.6 | 152.4 | |||||||
| 16# | 169.7x80.8 | 6.68x3.18" | 101.6 | 127 | 152.4 | ||||||||
Remark: The size is not complete, it is only routine.
Company Information
Founded in Shanghai in 2019, Shanghai Jisi Environmental Protection Technology Co., Ltd. is a technology, sales and service company focusing on the environmental protection of industrial exhaust gas; In the same period, a brand new catalyst brand "Hive Tech" was created for the industrial exhaust catalyst market, aiming to provide high-quality catalysts for the market.
The establishment of "Haifu" hopes to make domestic brands occupy a place in this market through continuous R&D investment and its advanced production equipment. Our fully automated production line brings fast response and delivery as well as high quality and stability. Localized production brings high cost performance products, thus breaking the monopoly and leading position of imported catalysts.
The company's main products are precious metal/base metal catalysts for VOC emission reduction, SCR catalysts. In addition to general-purpose catalysts, the company also launched efficient alkane catalysts, S-resistant catalysts and halogen resistant catalysts for various market segments.
In addition, the shareholders and relevant beneficiaries of the Company also act as agents for other environmental protection related products, such as pumps/valves/control components, to obtain the best price through long-term cooperation with suppliers of this type for foreign trade business.
