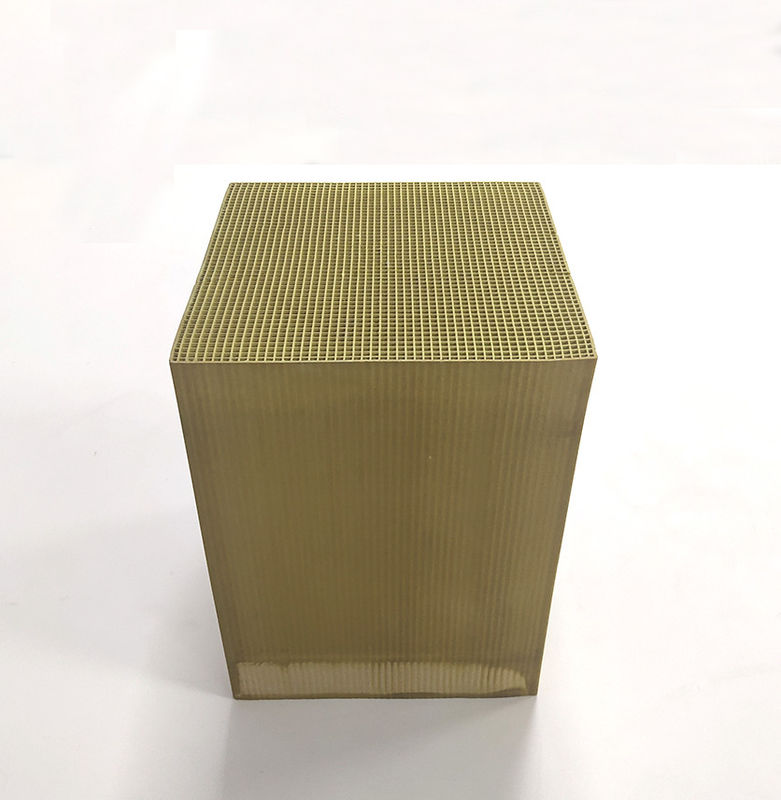

Zeolite Honeycomb Catalyst Platinum EURO 4 5 6 Denox DOC SCR POC ASC
600cpsi Honeycomb Catalyst For DOC/SCR/POC/ASC Catalyst
Product Description
1.Porous ceramics is a concept put forward relative to dense ceramics. Porous ceramics have high apparent porosity, and there are a lot of identical or closed pores in materials. The application of porous ceramics began in the late 19th century, and its production mainly depends on artificial sintering synthesis. By adjusting and controlling different manufacturing parameters and conditions, pores with different numbers, sizes and shapes can be produced inside, so as to produce special porous structures. Porous ceramics not only have the advantages of high chemical stability, high temperature resistance, corrosion resistance and high strength, but also have the new characteristics of small volume density, large specific surface area and high porosity, which makes it widely used in environmental protection, chemical industry, medical treatment, optics, metallurgy, electronics, energy and other industries.
2.Chemical Composition:
|
Chemical Composition |
Alumina Ceramic |
Mullite |
Cordierite |
Cordierite porous |
Quartz |
|
porous |
dense |
Porcelain |
|||
|
SiO2 |
41-44 |
26-29 |
59-59 |
48-52 |
65-68 |
|
Al2O3 |
50-53 |
67-70 |
24-27 |
34-37 |
25-30 |
|
MgO |
≤0.4 |
≤0.4 |
7-8 |
8-9 |
≤0.5 |
|
Alkali |
≤4 |
≤1.3 |
≤3 |
≤1.3 |
≤5 |
3 .Geometric data:
|
Size |
150×150×300mm |
150×150×300mm |
150×150×300mm |
150×150×300mm |
|
Channels |
25 x 25 |
40 x 40 |
50 x 50 |
60 x 60 |
|
Chanel width |
4.9mm |
3.0mm |
2.4mm |
2.0mm |
|
Inner walls |
1.0mm |
0.7mm |
0.6mm |
0.45mm |
|
Spec area |
540m²/m³ |
825m²/m³ |
1050m²/m³ |
1310m²/m³ |
|
Void |
67% |
64% |
63% |
64% |
4.Physical Data
|
Materials |
Units |
Alumina ceramic |
Mullite |
Cordierite |
Cordierite porous |
Quartz |
|
|
|
|
||||
|
porous |
dense |
porcelain |
||||
|
Density |
g/cm3 |
2.7 |
2.1 |
2.5 |
1.9 |
2.3-2.5 |
|
Bulk Density |
Kg/m3 |
965 |
832 |
871 |
778 |
889 |
|
Thermal Expansion Coefficient |
10-6 /°C |
6,2 |
3,5 |
3,4 |
6,2 |
4,8 |
|
Specific heat Capacity |
J/KgK |
992 |
998 |
942 |
1016 |
897 |
|
Thermal Conductivity |
W/mK |
2.79 |
2.42 |
1.89 |
1.63 |
1.37 |
|
Resistance to Fluctuated Temp |
Max K |
500 |
550 |
500 |
600 |
500 |
|
Softening Temperature |
°C |
1500 |
1580 |
1320 |
1400 |
1380 |
|
Max. temperature |
°C |
1400 |
1480 |
1200 |
1300 |
1280 |
|
Average Thermal Capacity |
KWh/m3K |
0.266 |
0.231 |
0.228 |
0.219 |
0.222 |
|
Porosity Ratio |
% |
0.8 |
26 |
0.4 |
15 |
0.6 |
|
Acid Resistance |
% |
0.2 |
2.5 |
5 |
16.7 |
0.3 |
All the data is only for reference, specific sizes and hole shapes are according to customers' requirements.
