Volatile Organic Compounds VOC Catalyst Oxidative Destruction
High-performance high quality Volatile Organic Compounds VOCs Catalyst
Product Description
1. Introuduction
VOCs organic waste gas purification adopt by low temperature catalytic combustion method, low temperature catalytic combustion process is dealing with the organics in end gas to be low temperature, highly active and energy conservation and environment protection by the catalytic effect of catalyst, so that to achieve the purpose of emission standard.
The reaction of catalytic combustion is a typical gas - solid catalytic reaction, its essence is at a certain temperature, organics will be adsorbed on the catalyst surface (VOCs) and catalyzed oxidation reaction with the oxygen in the air, completely oxidized into harmless CO2and H2O, and release the heat of reaction.
The catalyst can be greatly reduced organic light-off temperature, for the flameless combustion, reducing the preheating energy consumption and NOx.
VOCs organic waste gas purification adopt by low temperature catalytic combustion method, low temperature catalytic
combustion process is dealing with the organics in end gas to be low temperature, highly active and energy conservation and environment protection by the catalytic effect of catalyst, so that to achieve the purpose of emission standard.
The reaction of catalytic combustion is a typical gas - solid catalytic reaction, its essence is at a certain temperature, organics will be adsorbed on the catalyst surface (VOCs) and catalyzed oxidation reaction with the oxygen in the air, completely oxidized into harmless CO2and H2O, and release the heat of reaction.
The catalyst can be greatly reduced organic light-off temperature, for the flameless combustion, reducing the preheating energy consumption and NOx.
2. Operation condition & Technology properties
| Serial No. | Test Items | Technical Specification |
| Carrier could cordierite and composite alumina with different specs | ||
| 1 | Space velocity | ≥1×104 h-1 |
| 2 | Ignition temperature | 150°C-300 °C |
| 3 | Optimal operation temperature | 300°C-500 °C |
| 4 | Waste gas purification rate | ≥90 |
| 5 | Service life | 0.5~2 years |
| 6 | Outlet Waste gas concentration | <100ppm |
| 7 | Bulk density | 0.68±0.05g/mL |
| 8 | Crushing strength | ≥14 MPa |
| 9 | Coating loading | >10.0% |
| 10 | Active component loading | 0.05%--0.2%(or upon customer requirement) |
| 11 | Expulsion rate | <1% |
| 12 | Appearance | Conventional fawn (reduction in gray) |
| 13 | Package | Moisture-proof and sealed |
| 14 |
Recommended installation Height/diameter ratio |
Ceramic honeycomb 4:1;2:1 particle type: 1:1;1:2 |
3.general specifications
| Length | Width | Height | Cell density(CPSI) |
| 150 | 150 | 50 | 46,100,200,300,400 |
| 150 | 150 | 75 | |
| 150 | 150 | 100 | |
| 150 | 150 | 200 | |
| 150 | 150 | 300 | |
| 150 | 150 | 400 |

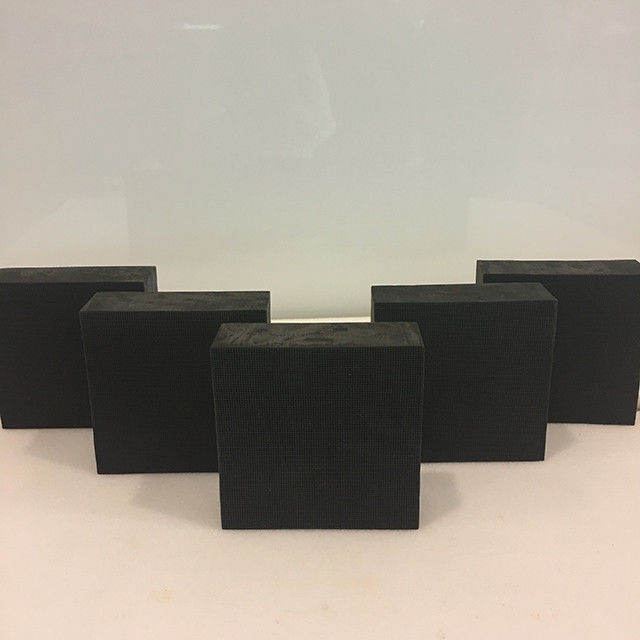

4.Product display
Company Information
Founded in Shanghai in 2019, Shanghai Jisi Environmental Protection Technology Co., Ltd. is a technology, sales and service company focusing on the environmental protection of industrial exhaust gas; In the same period, a brand new catalyst brand "Hive Tech" was created for the industrial exhaust catalyst market, aiming to provide high-quality catalysts for the market.
The establishment of "Haifu" hopes to make domestic brands occupy a place in this market through continuous R&D investment and its advanced production equipment. Our fully automated production line brings fast response and delivery as well as high quality and stability. Localized production brings high cost performance products, thus breaking the monopoly and leading position of imported catalysts.
The company's main products are precious metal/base metal catalysts for VOC emission reduction, SCR catalysts. In addition to general-purpose catalysts, the company also launched efficient alkane catalysts, S-resistant catalysts and halogen resistant catalysts for various market segments.
In addition, the shareholders and relevant beneficiaries of the Company also act as agents for other environmental protection related products, such as pumps/valves/control components, to obtain the best price through long-term cooperation with suppliers of this type for foreign trade business.
