Stainless Steel Mag Drive Pump Single Stage And Multistage Pumps 110m3 H

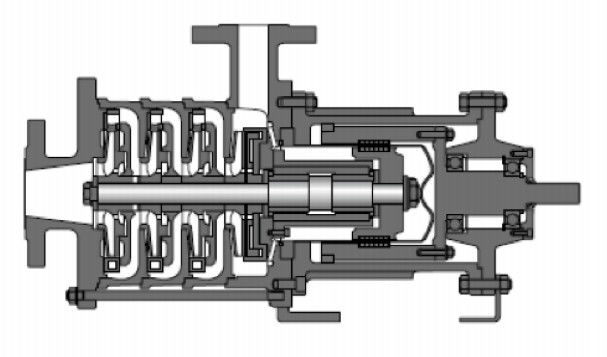

Magnetic driving pump-Multistage type

Magnetic drive pump

Advantages:

1. The advanced European hydraulic model is used, with high hydraulic efficiency;

2. Excellent electromagnetic design, high motor efficiency;

3. Shielding sleeve is made of Hastelloy C material and special molding process, with extremely low magnetic loss and heat generation;

4. SmCo rare earth alloy is used as the magnetic material, and the irreversible demagnetization temperature reaches 450 ℃;

5. The sliding bearing uses pressureless sintered crystalline silicon carbide, which has high strength and good wear resistance;

6. The axial force is automatically balanced, and the bearing has zero wear during operation;

7. Heat balance design, the heat generated by magnetic loss will not lead to medium vaporization;

8. Building block principle, simple structure, convenient for on-site maintenance;

9. The product is stable, reliable, with long service life and low maintenance cost.

Magnetic drive pump is a new type of pump, which consists of pump, magnetic driver and motor. The core component of the magnetic actuator is composed of an external magnetic drive, an internal magnetic rotor and an isolation sleeve of a closed medium. According to the principle of magnetism, when the motor drives the external magnetic rotor to rotate, the permanent magnetic field penetrates the air gap and non-magnetic substances, driving the internal magnetic rotor connected with the impeller to rotate synchronously, realizing the non-contact transmission of power, transforming the dynamic seal into a static seal, and realizing complete leakage free.

The products are mainly used in petroleum, chemical industry, refrigeration, chlor alkali, environmental protection and other industries to transport flammable, explosive, highly toxic, corrosive and other dangerous media.
