centrifugal pump-Petrochemical process pump
Our petrochemical process pump series products are horizontal, single-stage, single suction, radial split and centrally supported volute pumps designed according to the 11th edition of API 610 Centrifugal Pumps for Petrochemical and Natural Gas Industries and API 682 Shaft Seal Systems for Centrifugal Pumps and Rotary Pumps, based on the digestion and absorption of foreign advanced pump manufacturing technology.

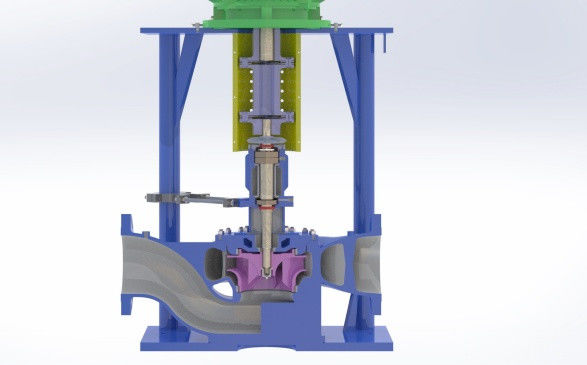

Pump body: (water pressure chamber) is of volute structure, and double volute structure is adopted for outlet of 80mm or more, which can balance radial force well and ensure rotor stiffness.
impeller:Excellent hydraulic model is adopted,It has high efficiency and cavitation performance.
Mouth ring: the axial force is balanced by the method of balancing hole and mouth ring, and the impeller, pump body and pump cover are equipped with mouth rings at the same time, with the same diameter of the front and rear mouth rings. Only front mouth ring, no rear mouth ring
Design parameters:
design flow 2600m3/h,
lift 300m,
pressure 5.0MPA
