Refrigeration Shielded Electric Single Stage And Multistage Pumps Bls Single Type 1-10Mpa

REFRIGERATION SHIELDED ELECTRIC PUMP BLS Single Type

1. Using advanced hydraulic models in Europe, the hydraulic efficiency is high.

2. Excellent electromagnetic design, high efficiency of motor;

3. The can is made of 316L and special forming technology, with low eddy current loss.

4. The sliding bearing is FH82A. It has good wear resistance and self-lubrication. It is
suitable for refrigerant transportation fluctuation situation;

5. Axial force is automatically balanced and bearings are wear-free when running.

6. Thermal balance and turbocharging design of rotor chamber, the heat generated by

canned motor will not cause medium vaporization at all.

7. The principle of building block is simple and convenient for on-site maintenance.

8. The product is stable, reliable, long service life and low maintenance cost

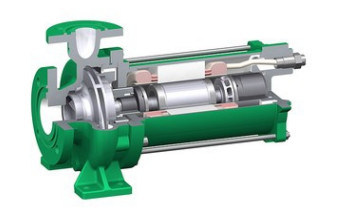

Shielded electric pump is a new type of pump, which consists of pump, shield sleeve and shield motor. The rotor of the shielded motor is coaxial with the impeller, and the stator is coaxial with the

The rotor is isolated by the stator shield sleeve. When the rotor of the shielded motor rotates, the impeller rotates synchronously to realize the non-contact transmission of power and transform the dynamic seal into a static seal, so as to achieve complete leakage free.

The refrigeration canned motor pump provided by us is a completely leak free product, mainly used to transport freon, liquid ammonia, silicone oil, carbon dioxide and other media

Ordering Instructions
In order to better apply the product to the operating conditions, please provide the following parameters when selecting the model, and we will match the best for you at the first time
Suitable pump type.
1. Media Name
2. Density
3. Temperature
4. Working pressure
5. Vaporization pressure
6. Medium viscosity
7. Flow
8. Head
9. Device cavitation allowance
10. With or without particles
11. Material requirements
12. Motor requirements

FAQ

Q1. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q2. Do you have any MOQ limit for order?

A: Low MOQ, 1pc for sample checking is available.

Q3. How to proceed an order ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q4. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
