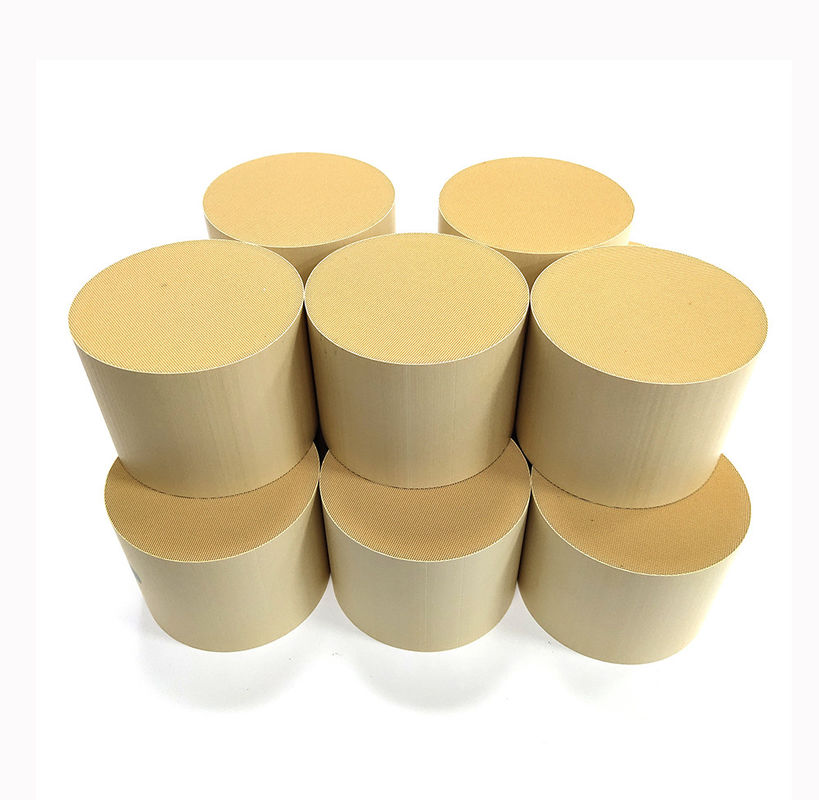

Iron Copper Zeolite Scr Catalyst Selective Catalytic Reduction Nox Nh3 Low Temperature
High Temperture Iron-Zeolite Selective Catalyst Reduction Catalyst
Product Description
1. Introuduction
1). SCR technology is a recation at use of the denitration catalyst at a certain temperature(270-400 degree),that NOX in the flue gas mixed with ammonia gas from the reducing agent supply the system after the occurence of the selective catalytic reduction reaction of nitrogen and water ,thereby reducing NOX emissions , and reducing smoke pollution to the environment.
The chemical eauation for a selective catalytic reaction process is :
4NO+4NH3+O2→4N2+6H2O 6NO2+8NH3→7N2+12H20
NO+NO2+2NH3→2N2+3H20
2). At present, commercial SCR catalyst basically to TiO2 for the substrate to V2O5 as the main active ingredient in WO3, MoO3 for anti-oxidation, anti-drug of auxiliary ingredients.
3). High performance honeycomb SCR Catalyst features
4). The Capacity of our Production of Honeycomb SCR Catalyst of our company is 8000m³/year
2. Specification
| Test items | unit | Standard value | measured value | |
| Main crystalline phase content of cordierite | % | >=90.0 | 92 | |
| Chemical composition | Al2O3 | % | 35.4±1.5 | 35.4 |
| MgO | % | 13.5±1.5 | 13.05 | |
| SiO2 | % | 49.7±1.5 | 49.59 | |
| Capacity | Kg/L | <=0.50 | 0.48 | |
| Compressive strength | Barotropy | Mpa | >=10.0 | 20.05 |
| Side compression | Mpa | >=2.0 | 6.53 | |
| C- axis | Mpa | >=0.15 | 0.45 | |
| Thermal expansivity(20-800℃) | 10-6/℃ | <=1.2 | 0.846 | |
| Thermal shock property(550℃) | times | >=3 | 3 | |
| Softening temperature | ℃ | >=1400 | 1405 | |
| Water absorption | % | 20-28 | 24.2 | |
3.pottery general specifications
| Diameter ø | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 1# | 80 | 3.15 | 60 | 80 | |||||||||
| 2# | 83 | 3.27 | 60 | 80 | 95 | 125 | |||||||
| 3# | 93 | 3.66 | 60 | 75 | 76.2 | 88.3 | 90 | 93 | 101.6 | 130 | 147.5 | 152.4 | |
| 4# | 101.6 | 4.00 | 60 | 62 | 68 | 75 | 76.2 | 80 | 90 | 101.6 | 123.3 | 136 | 152.4 |
| 5# | 103 | 4.06 | 100 | 130 | |||||||||
| 6# | 105.7 | 4.16 | 100 | 110 | 115 | 130 | 147.5 | 152.4 | |||||
| 7# | 118.4 | 4.66 | 50 | 60 | 63.5 | 70 | 76.2 | 90 | 100 | 101.6 | 120 | 127 | 152.4 |
| 8# | 143.8 | 5.66 | 75 | 76.2 | 101.6 | 152.4 | |||||||
| 9# | 165.1 | 6.50 | 139.7 | ||||||||||
| 10# | 170 | 6.69 | 100 | ||||||||||
| Ellipse | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 11# | 120.65x80.01 | 3.15x4.75" | 50 | 75 | 100 | 120 | 152.4 | ||||||
| 12# | 144.3x68.1 | 5.68x2.68" | 76.2 | 101.6 | 152.4 | ||||||||
| 13# | 144x68 | There is no such specification. | 100 | 125 | |||||||||
| 14# | 147x95 | 5.79x3.74" | 40 | 50 | 100 | 127 | 152.4 | ||||||
| 15# | 144.8x81.3 | 5.7x3.2" | 50 | 76.5 | 101.6 | 152.4 | |||||||
| 16# | 169.7x80.8 | 6.68x3.18" | 101.6 | 127 | 152.4 | ||||||||
Remark: The size is not complete, it is only routine.
| Length | Width | Height | Cell density(CPSI) |
| 150 | 150 | 50 | 46,100,200,300,400 |
| 150 | 150 | 75 | |
| 150 | 150 | 100 | |
| 150 | 150 | 200 | |
| 150 | 150 | 300 | |
| 150 | 150 |
400
|
